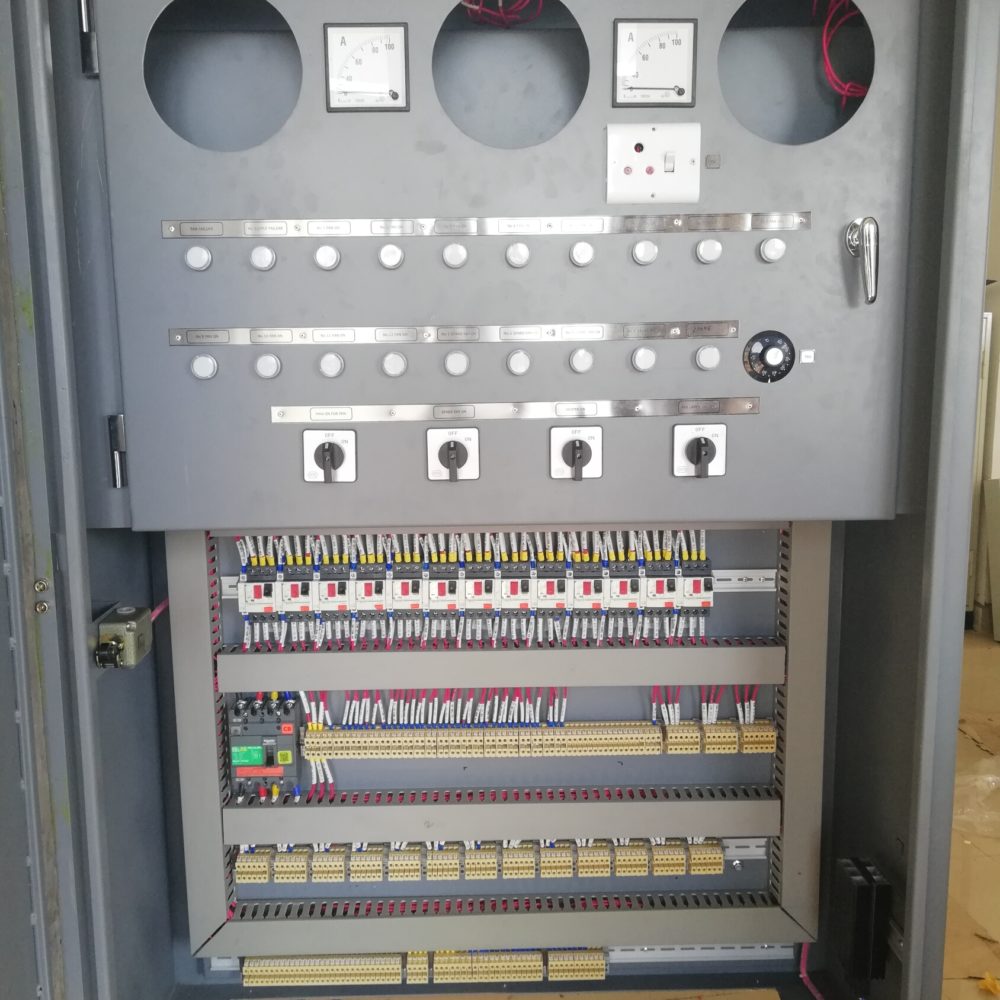

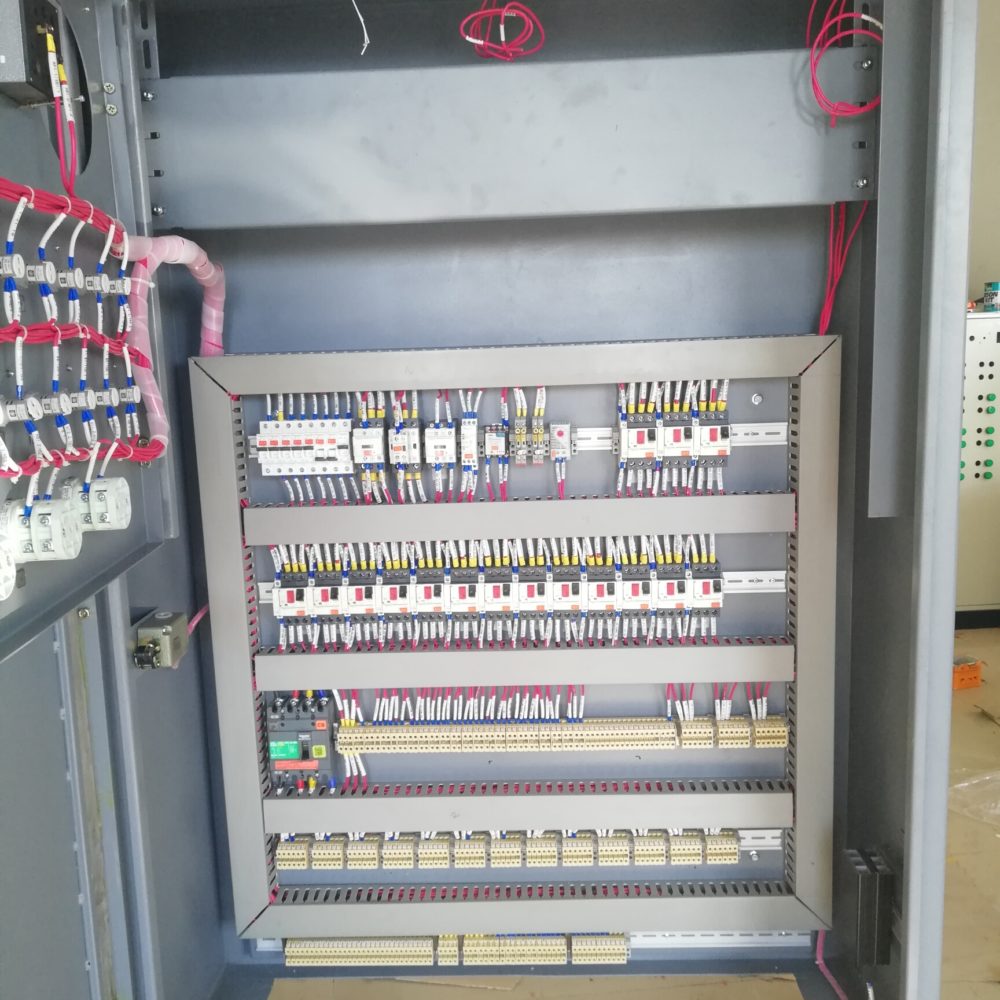

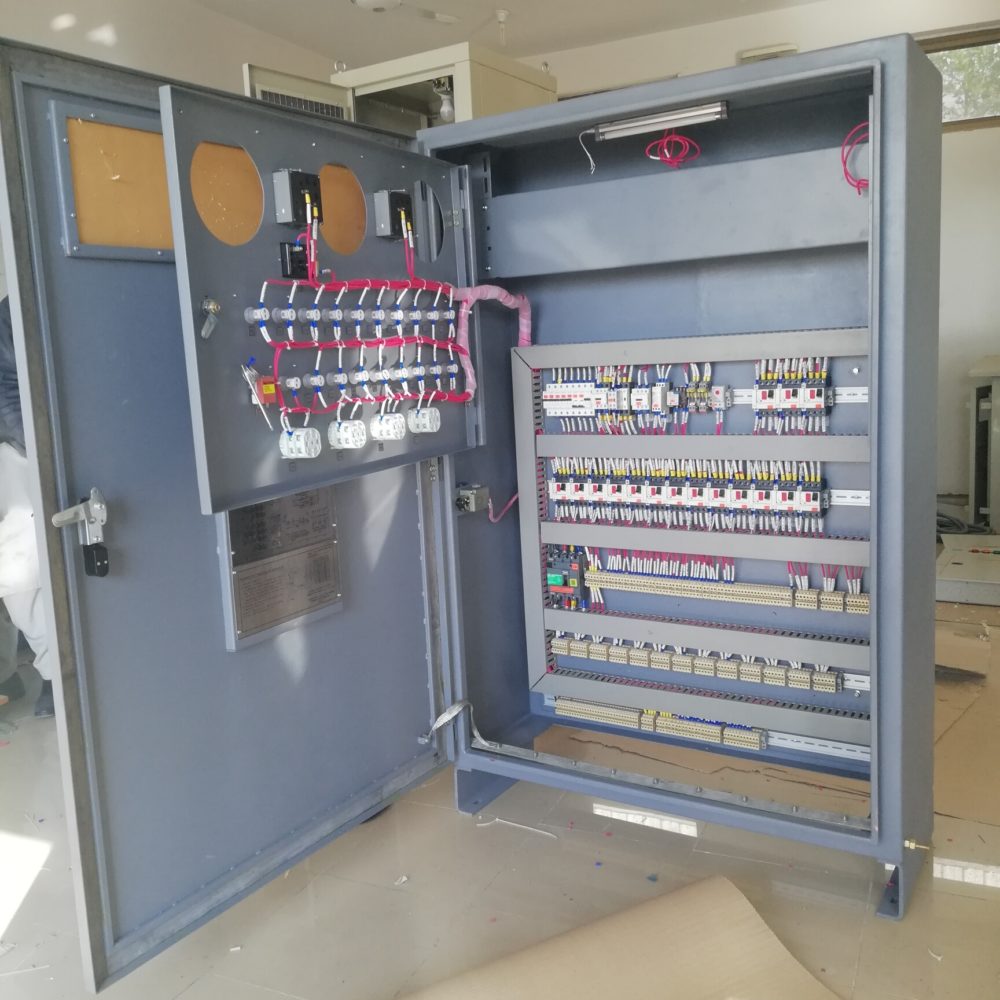

  • TRANSFORMER FAN CONTROL CABINETS-OUT DOOR

    Salient features

    • Used for instruments & devices to control cooling fans of power transformers
    • Properly sealed to prevent ingress of dust & rain water
    • Approved by heavy electrical complex (HEC) & WAPDA
    • Fabricated with high quality steel sheet of 2 mm thickness
    • Separate compartments for oil & winding indicators , control & protective gears & terminal bolts & gland plates for alarm trip connects
    • Fitted with lighting arrangements & thermostatically controlled heaters
    • High quality copper wires for wiring (2.5 mm sq.)
    • Powder coating -exterior & interior
    • Detachable gland plate with adequate knock-outs
    • Completed assembled wired & tested
    Technical details
    • Dimensions (mm) 1100 w x 400 d x 1600 h
    • Nominal system voltage (ac) 400 /230 v
    • Dc control voltage 110 v
    • Frequency 50 Hz
    • Ambient temperature 50 degree Celsius
    • Ac with stand test voltage 2.5 kv
