  • TRANSFORMER AUXILARY CONTROL PANEL IN DOOR

    SALIENT FEATURES

    • Approved By Heavy Electrical Complex (HEC) & WAPDA
    • fabricated with High Quality steel sheet of 2 mm thickness
    • Cut outs for Relays Instruments & Accessories
    • High Quality Copper wires for wiring (2.5 mm Sq.)
    • Powder Coating -Exterior & Interior

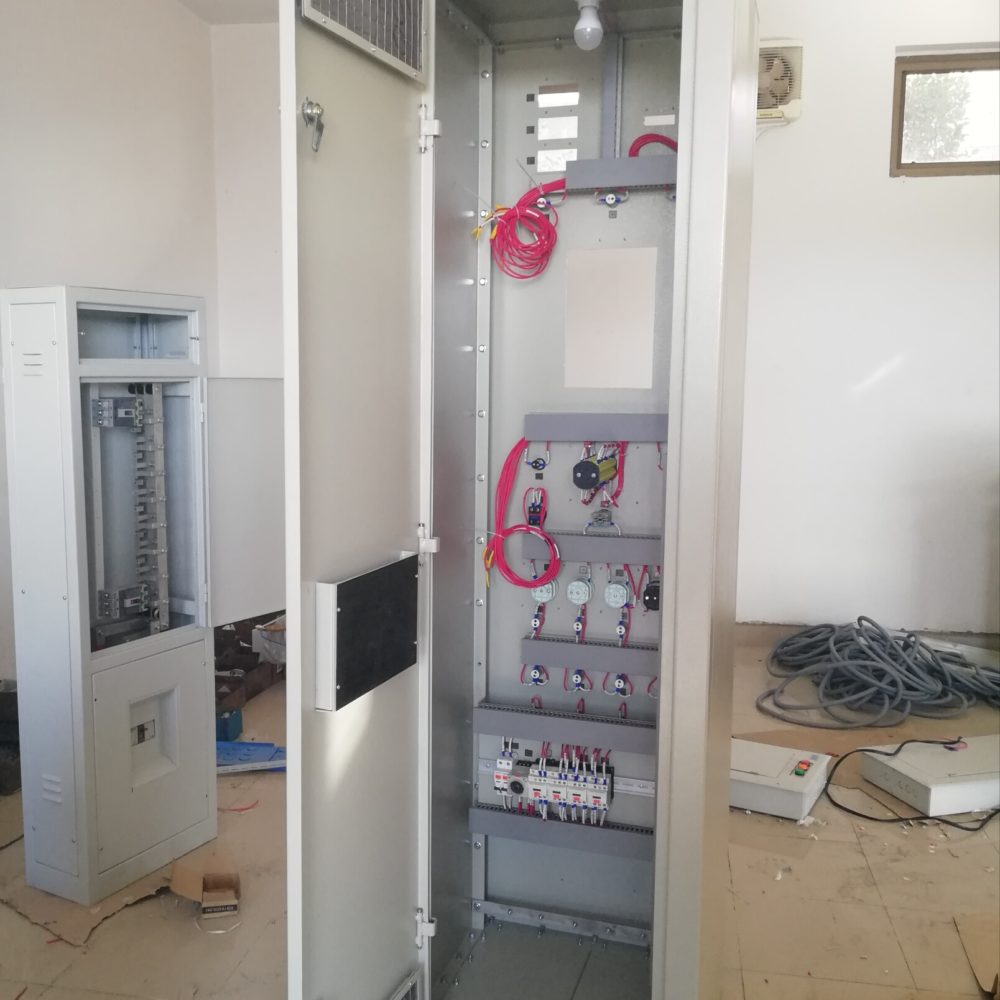

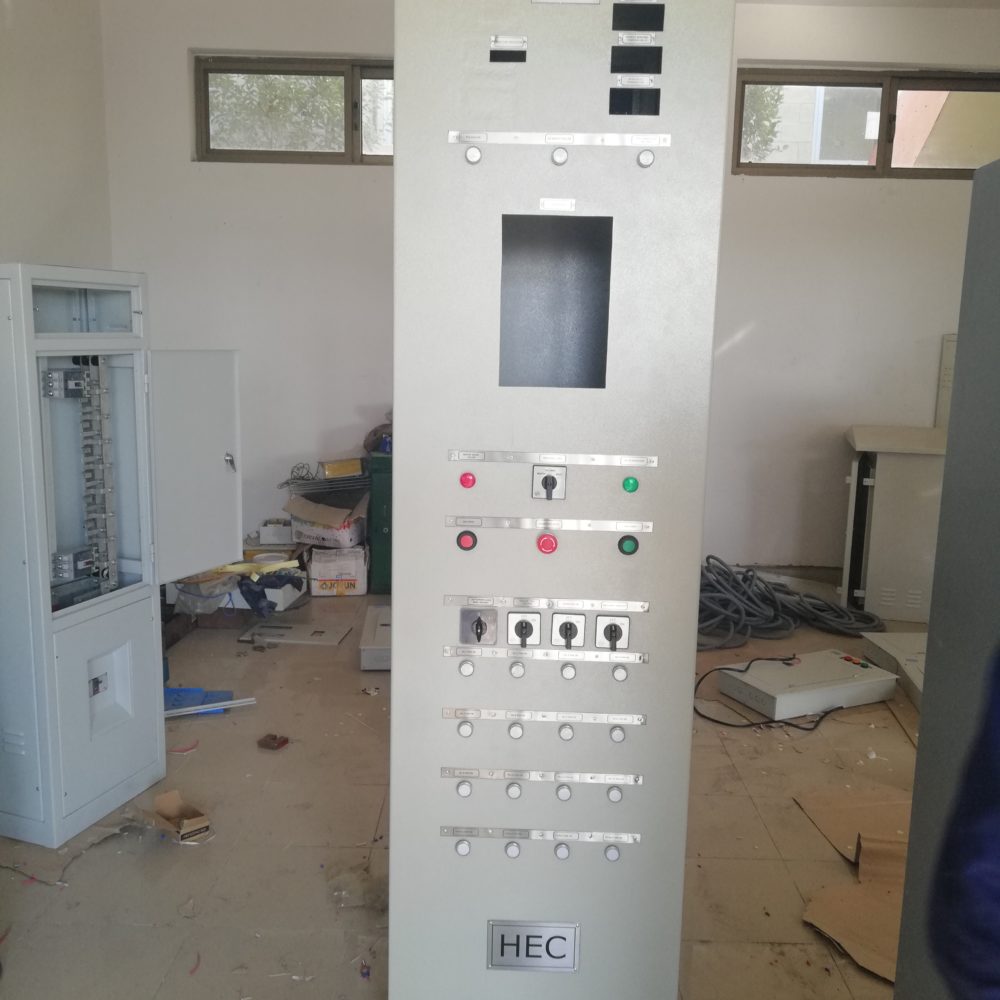

    • Fitted with tap position indicator , oil & winding temperature remote indicators , switches , push buttons indication lights & selector switches
    • Detachable gland plate with adequate knock-outs
    • Auto / Manual / off & Independent / parallel Selection

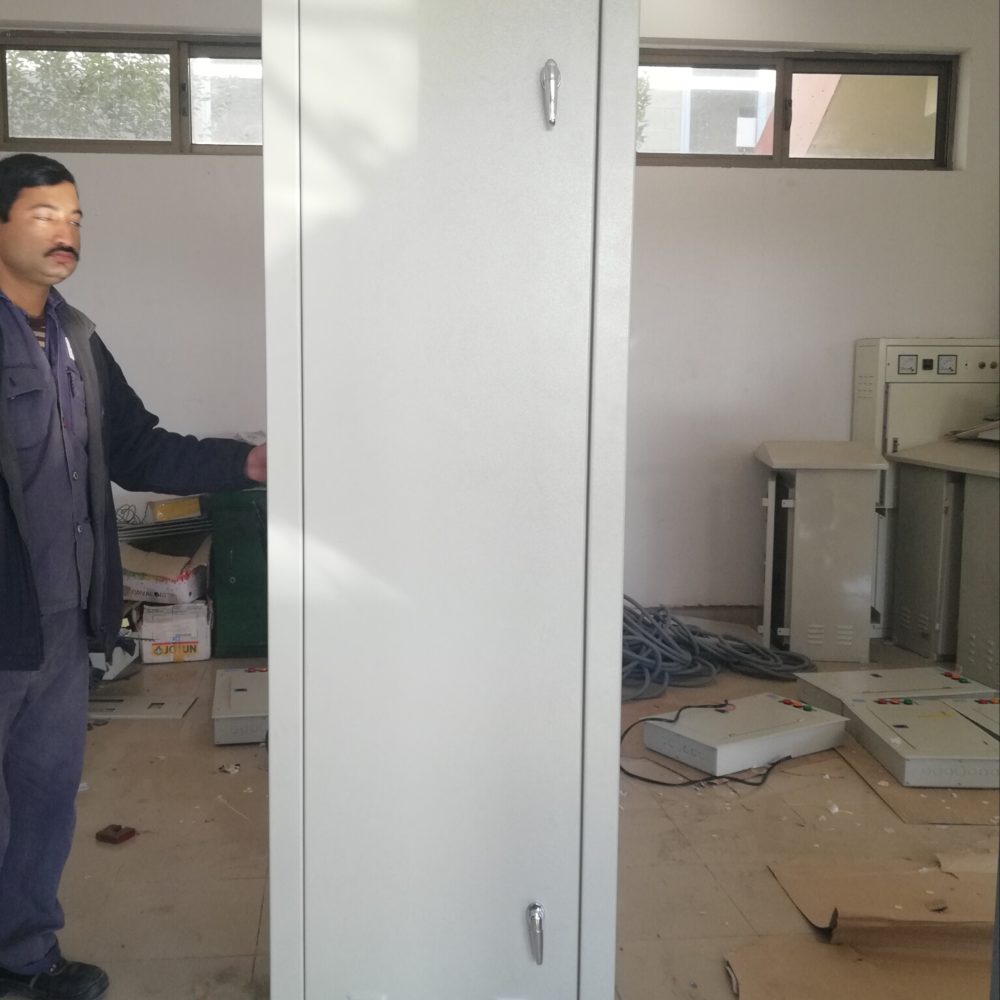

    • Single leaf hinged door
    • Completed assembled wired & tested

    Technical details

    • Dimensions (mm) 600 W x 600 D x 2200 H
    • Nominal System Voltage (AC) 400 /230 V
    • DC Control Voltage 110 V
    • Frequency 50 Hz
    • Ambient Temperature 50 Degree Celsius
    • AC with stand test voltage 2.5 Kv
